Pressure Booster Pumps
Overview
Pressure booster pumps are meticulously engineered to solve low or inconsistent water pressure and ensure reliable water distribution. They are assembled with stainless steel hydraulic parts on a single friction-welded shaft. These pumps are energy efficient, providing substantial operational cost savings. The pump's design prioritizes reliability, enabling seamless 24/7 operation to deliver uninterrupted water pressure for showers, faucets, and various water outlets.
Performance and Features
- Maximum pressure capacity up to 6.6 bar
- Maximum discharge capacity up to 132 lpm
- Maximized hydraulic efficiency guarantees optimal pump performance
- Maintains uniform pressure throughout the pipeline
- Lower noise level
- Designed for wide voltage operation – 170 to 250 volts
- Protect against corrosion with Stainless steel Impellers, Diffusers and Pump shaft
- The motor houses shielded type deep groove ball bearings, pre-filled with high grade grease, to take up the radial and axial thrust loads
- Y-Strainer to prevent foreign particles entry into pump
- The Cast iron components and motor body of the pumpset are coated with Cathodic Electrodeposition (CED) for corrosion protection
- Adequate motor fin surface area for effective motor cooling
- To protect the motor from overload, Thermal Overload Protector (TOP) is provided
- Designed to protect bearings from water and ingress with V-ring
- Increased tank life with protective sheath for diaphragm
- High quality pressure tank with long lasting corrosion protection epoxy powder paint

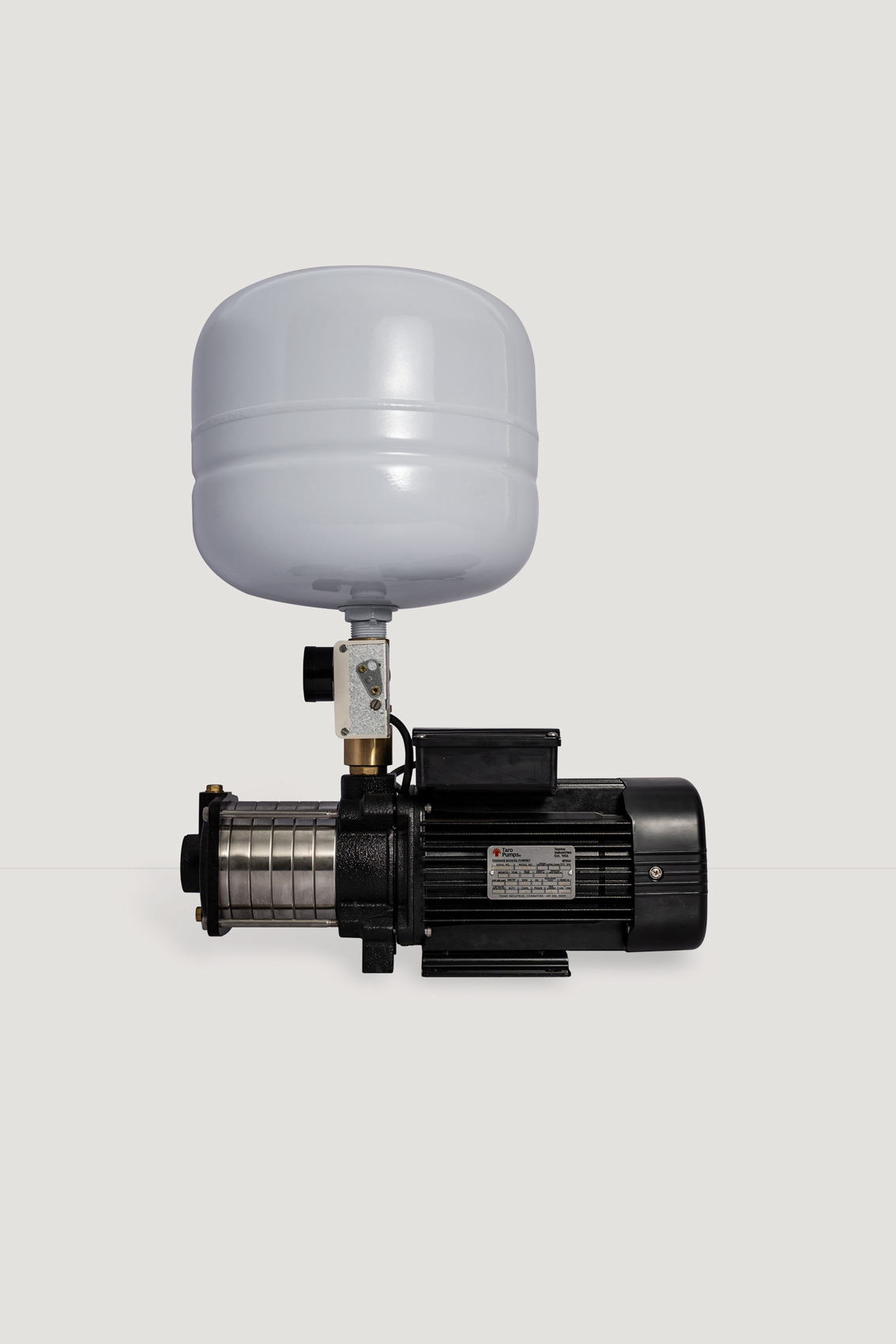

A pressure booster pump is designed to increase water pressure. It ensures that water flows strongly, and consistently to all outlets with the help of mechanical pressure controller.
Mechanical Controller Advantage
- Automatic control of Pumpset On/Off operation
- Wide range of Differential pressure setting
7 Models Available

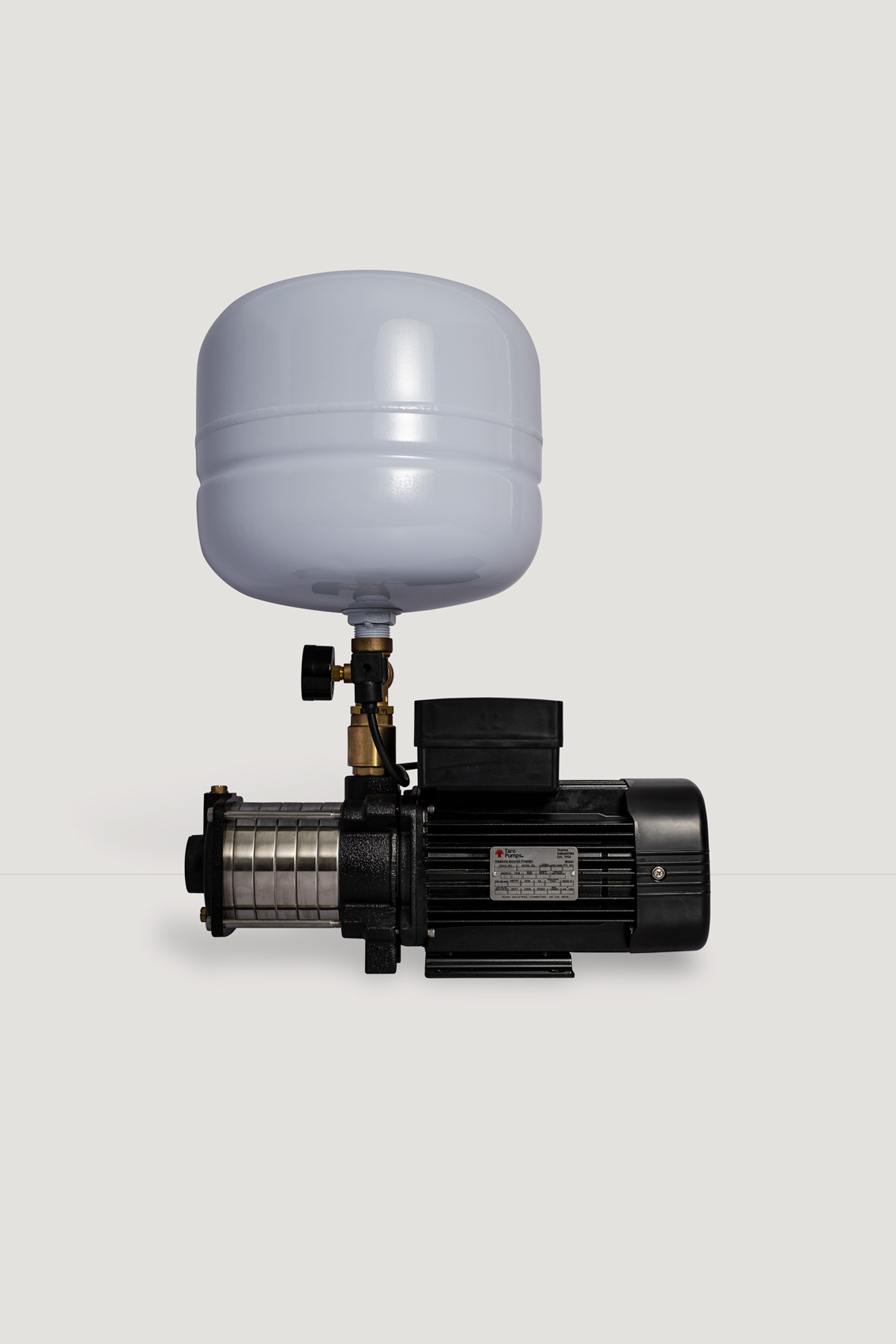

A pressure booster pump is designed to increase water pressure. It ensures that water flows strongly, and consistently to all outlets with the help of electronic pressure controller.
Electronic Controller Advantage
- Automatic control of Pumpset On/Off operation
- Easy to set the required pressure
- High functional accuracy
- LED indicator for pump status
- Durable components of EC extend the overall lifespan of the pump system
Protective Features
- Dry run prevention
- Overload prevention
- Under/Over Voltage prevention
- Anti-cycling prevention
- Low pressure prevention
- Pressure sensor fault detection
7 Models Available
